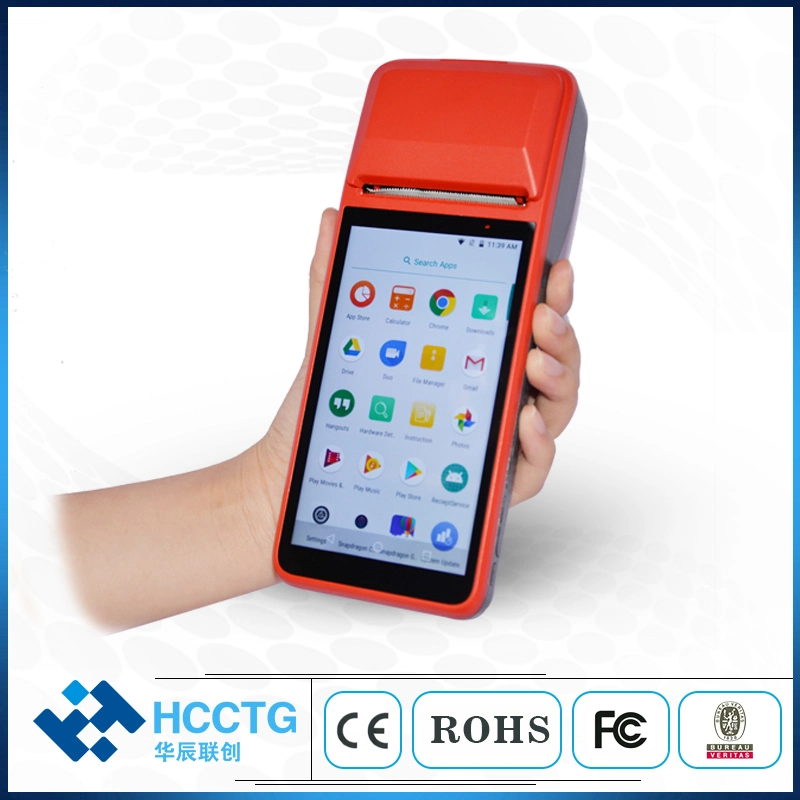

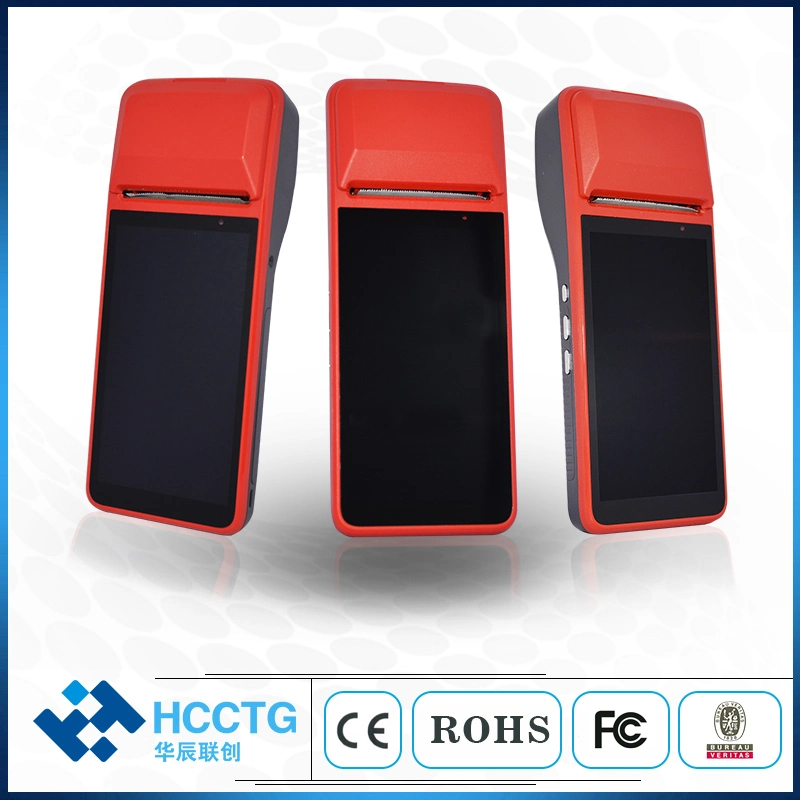

Smart Handheld POS Terminal R330
Specification












Specification
Introduction | R330 Smart Handheld POS Terminal |
Processor | Snapdragon 425, 1.4GHz, Quad-core, Cortex-A53 |
Memory | 1GB RAM, 8GB Flash, ( 2+16 optional ) |
OS | Android 7.1 Nougat / Senraise OS |
Display | 5.0'' HD, 1280*720 IPS; G+FF multi-capacitive touch |
Key PAD | Power on / off, Volume up / Scanner |
Card Slot Support | PSAM: 1* SAM Card ( ISO 7816 standard ) SIM: 1*SIM Card ( 1.8v / 3.0 v ) |
Fiscal Module | Support 12C or UART interface 30.0±0.2*30.0±0.2*9.2±0.2 mm |
Data Connect | Communication: GSM, WCDMA, TDD_LTE, FDD_LTE |
NFC: ISO/ICE 14443 Type A & B, Mifare card at optional | |
WIFI: 2.4G/5GHz,Support IEEE802.11a/b/g/n | |
Bluetooth: Support 2.1/3.0/4.0, BLE, ibeacon | |
GPS | Built-in GPS, support A-GPS |
Termal Printer | High-speed 58mm line, 40 mm Roll, low noise, power saving |
Camera | Rear Camera: 5.0 M, AF (automatic focus) |
Front Camera: 0.3 M 3P, FF (Fixed-focus) | |
Barcode Scanner | Built-in 1D barcode scanning modules, 2D QR code is optional |
Battery | Two 18650 cell from samsung ( ICR 18650-26J ) 7.4v / 2600 mAh |
Speaker | 0.8 W / 85 dB |
Earphone-jack | 3.5mm standard, support external RFID reader via this connector |
Interface | 1*Micro USB connector, support OTG USB to RJ45 network |
Adaptor | Input: AC 100~240v, 0.5 A, output: 5v / 2 A |
Dimensions | 198*79*48 (L*W*H) mm |
Anti-Drop | 1.2 meter |
Environment | Normal Operating Temperature: 0-40ºC Storage Temperature: -20ºC ---60ºC |
